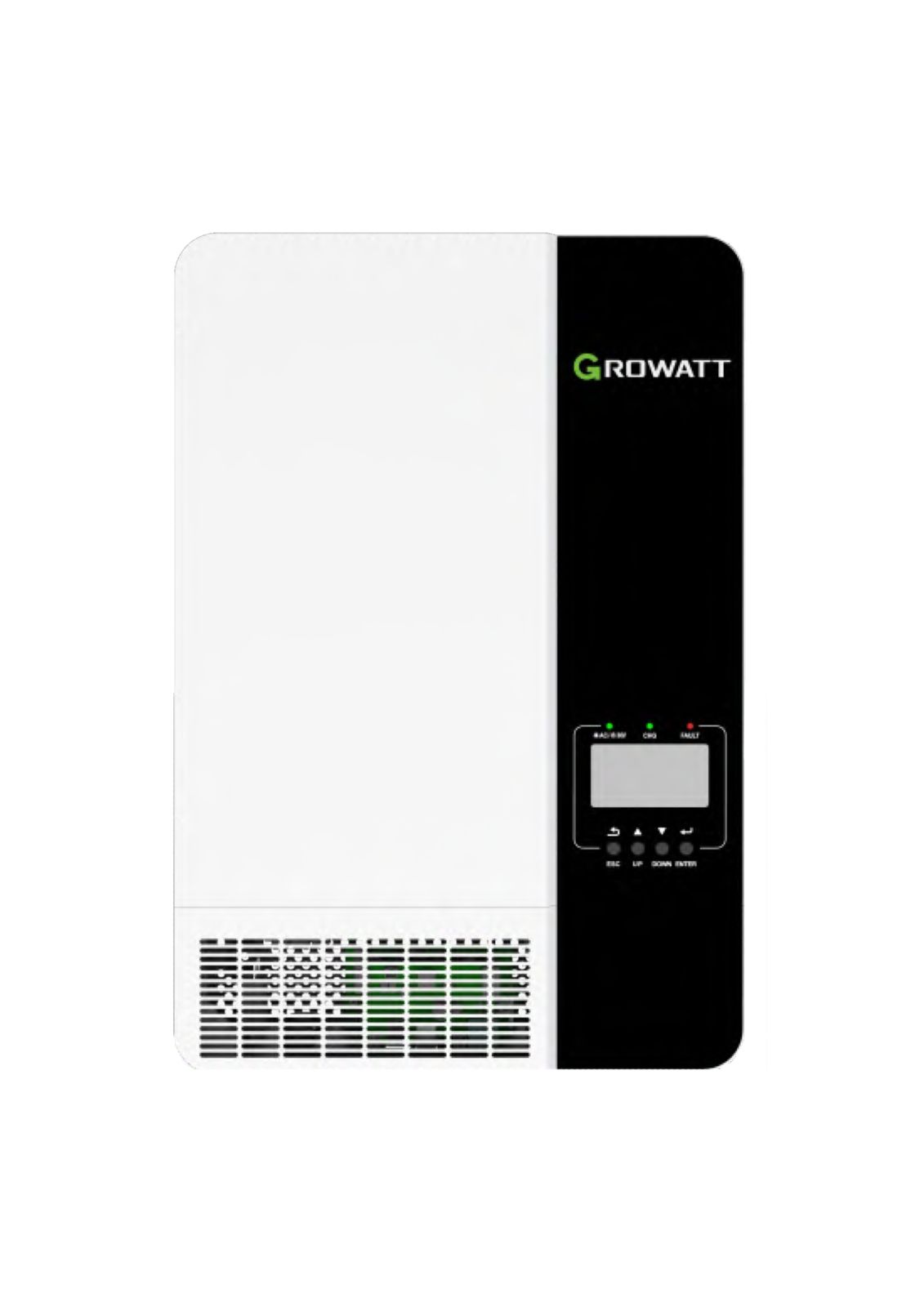

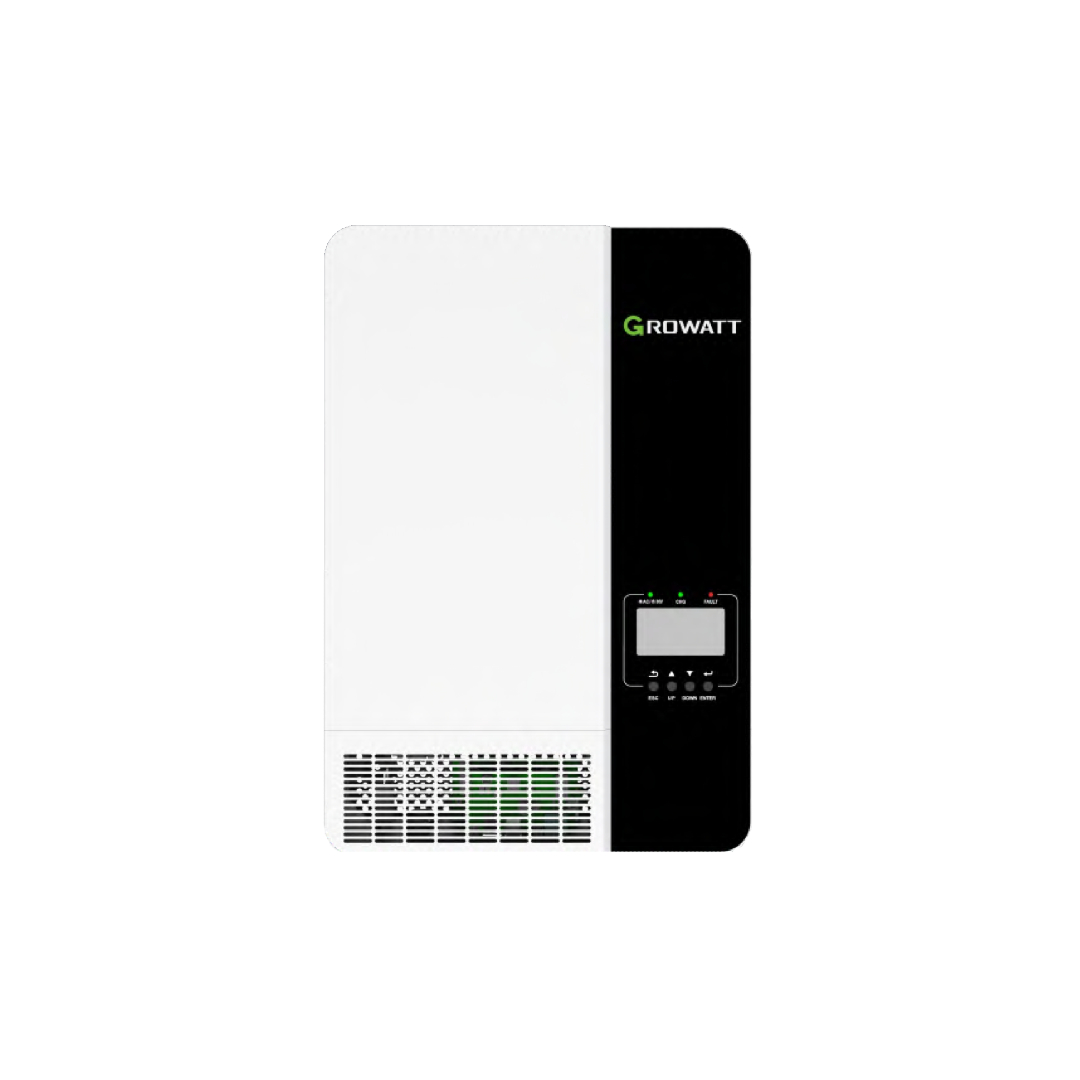

3.5KW Growatt SPF3500TL LVM-US Hybrid Inverter 48V, 120V
Original price was: $ 135,000.$ 125,000Current price is: $ 125,000.
INVERTER OUTPUT
RATED POWER – 3500VA/ 3500W
Parallel Capability – Yes, 6 units maximum
AC Voltage Regulation (Battery Mode) – 100Vac/110Vac/120Vac @ 50/60H
Surge Power – 7000VA
Efficiency (Peak) – 90%
Waveform – Pure sine wave
Transfer Time – 10ms typical，20ms Max
SOLAR CHARGER
Maximum PV Array Power – 4500W
MPPT Range @ Operating Voltage – 120VDC ~ 225VDC
Maximum PV Array Open Circuit Voltage – 280VDC
Maximum Solar Charge Current 80A
AC CHARGER
Charge Current – 40A
AC Input Voltage – 120VAC
Selectable Voltage Range 95-140VAC (For Personal Computers) ; 65-140VAC (For Home Appliances)
Frequency Range – 50Hz/60Hz (Auto sensing)
OPERATING ENVIRONMENT
Operating Temperature – 0°C 50°C
Storage Temperature – -15°C – 60°C
