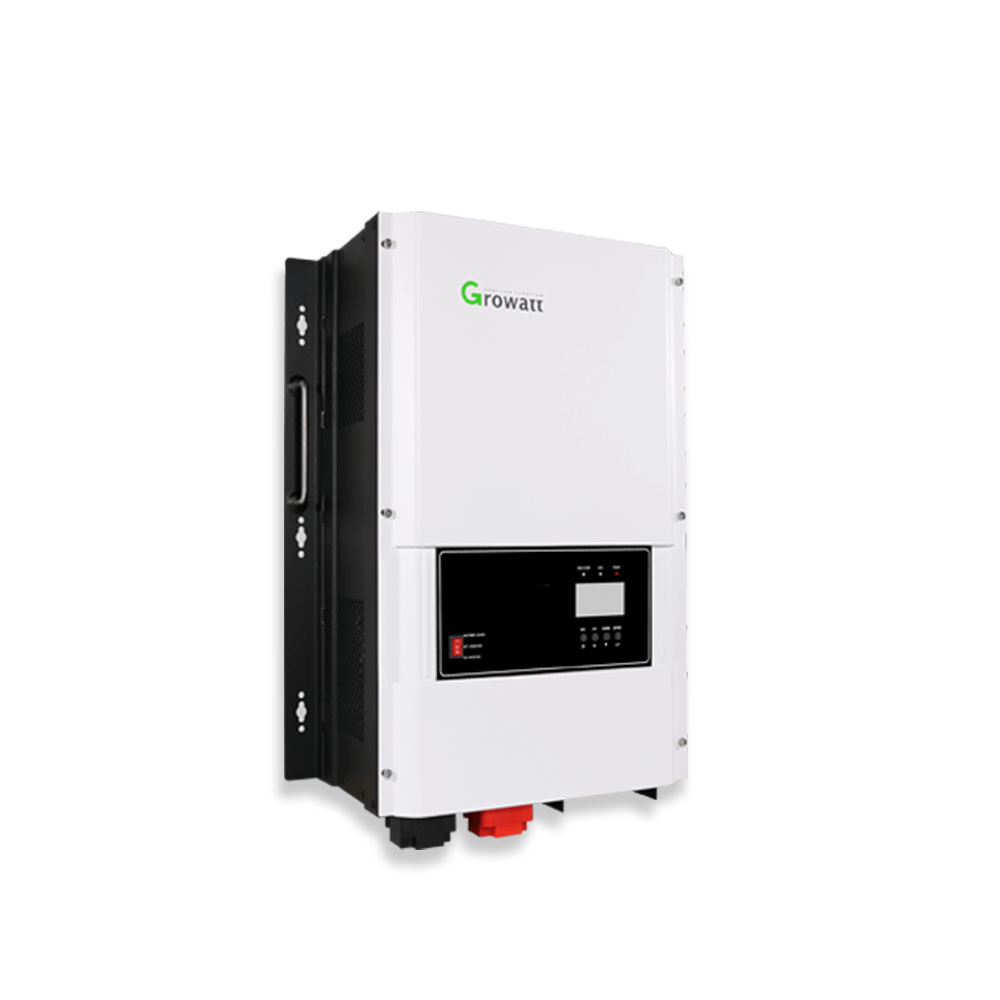

12kW Growatt Inverter SPF Split Phase 120-240V Hybrid Inverter 250VDC

INVERTER OUTPUT

RATED POWER – 12000W
AC Voltage Regulation – 220V/230V/240VAC(+/-10% RMS)
Surge Rating – 36KW
Output Frequency – 50Hz/60Hz +/-0.3 Hz
Inverter Efficiency (Peak) – 85%
Line Mode Efficiency – 95%
Transfer Time – 10ms typical，20ms Max

SOLAR CHARGER

Maximum Solar Charge Current 120A
Maximum PV Array Power – 7000W
MPPT Range @ Operating Voltage – 60VDC – 245VDC
Maximum PV Array Open Circuit Voltage – 150VDC
Maximum Efficiency 97.5%

AC INPUT

AC Input Voltage – 240VAC
Selectable Voltage Range – 184-272VAC (for UPS)
Frequency Range – 50Hz/60Hz (Auto sensing)
Maximum Charge Current – 100A

OPERATING ENVIRONMENT

Operating Temperature – 0°C – 45°C
